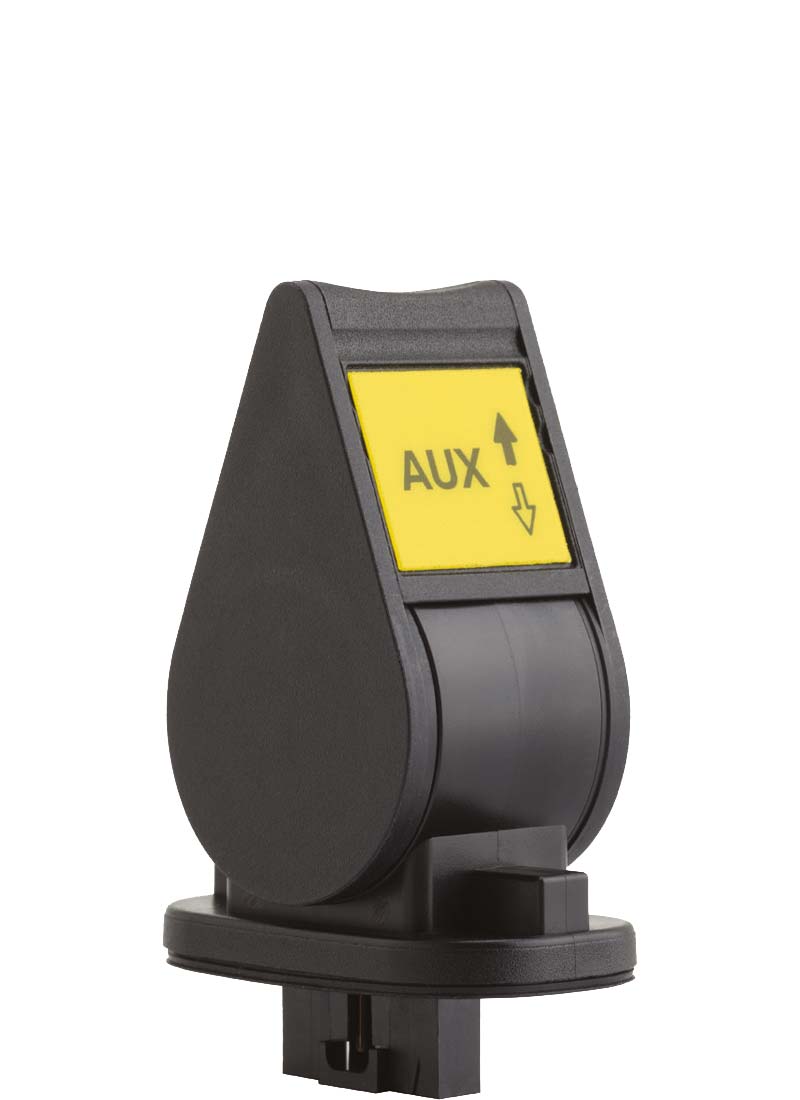

MJ
joystick series
MTEC-COMPONENTS linear joystick provides best in class reliability for portable station applications.
| MECHANICAL | |
| Lever operating angle | ± 30° |
| Lever action | self centering |
| Expected life | 5 million operations |
| ENVIRONMENTAL | |
| Operating temperature | -25 °C ÷ +70 °C according to EN 60068-2-1, -2-2 +25 °C ÷ +55 °C with 95% relative humidity according to EN 60068-2-30 |
| Storage temperature | -40 °C ÷ +85 °C according to EN 60068-2-1, -2-2 |
| Transport temperature | -40 °C ÷ +85 °C according to EN 60068-2-1, -2-2 |
| Environmental protection above the casing | IP66 according to IEC 60529 NEMA 4 according to STANDARD 250 of National Electrical Manufacturers Association |
| DIMENSIONS (mm) | |
| without protection cover | with protection cover |
 |
|
| MOUNTING DETAILS (mm) | |
 |
|
MJ-5L version and options
ANALOGUE 30° VERSION
| MECHANICAL | |
| Deflection angle | 30° (stepless) |
| Weight | 35 g |
| POTENTIOMETER TRACK | |
| Total track resistance for axis | 5 kΩ ±20% |
| Linearity (wiper open circuit) | ± 2% |
| Electrical range | ± 28° (100% output) |
| Center tap position | 48-52% |
| Maximum voltage | 30 Vdc |
| Maximum wiper current | 3 mA |
| Recommended wiper load impedance | > 1 MΩ |
| SWITCH - DIRECTIONAL OR CENTER OFF / CENTER ON | |
| Switches track resistance | < 150 Ω |
| Switch activation angle | ± 5° |
| Maximum applicable voltage | 30 Vdc |
| Maximum output current | 3 mA |

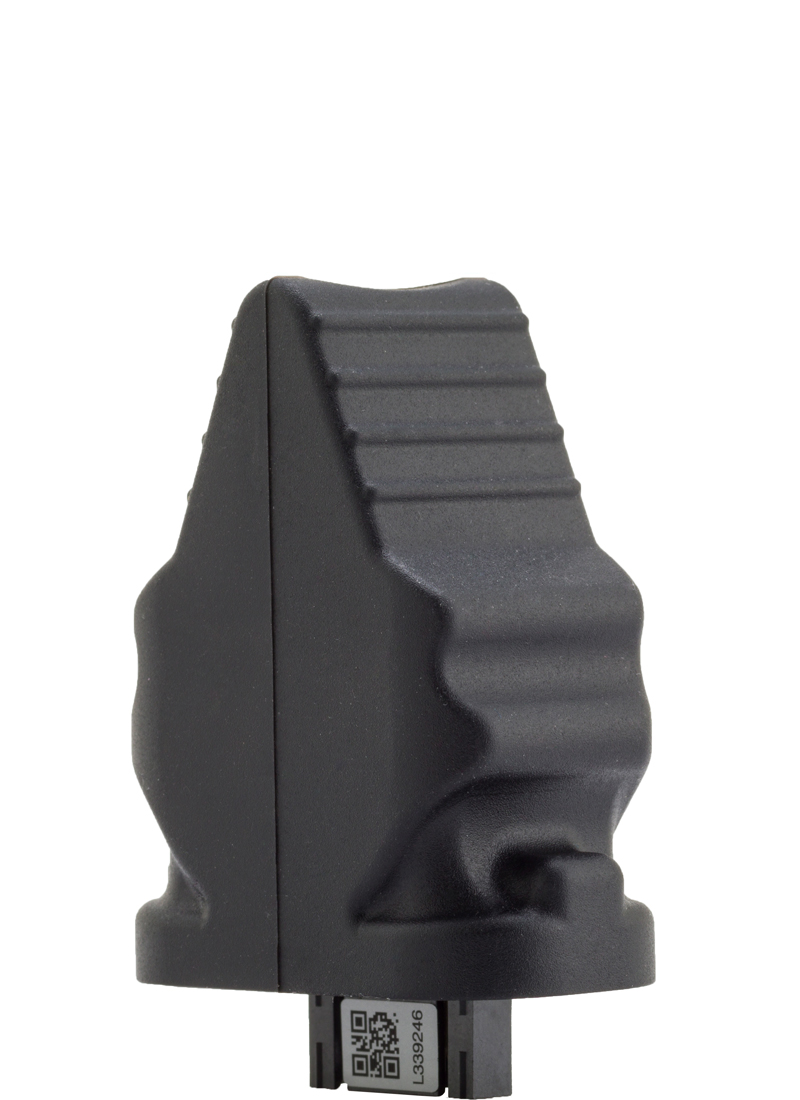

| PROTECTIVE COVER (OPTIONAL) | |
| The standard MTEC protective cover is in silicon with 40 ShA material . NBR 50 ShA material is also available as an option. | |
| COLOR CLIP (OPTIONAL) | |
| The MJ-5L allows the customization of the clip on the top of the joystick. Black clip is the standard, instead a different color is available after a contact with MTEC staff. | |
 | |
