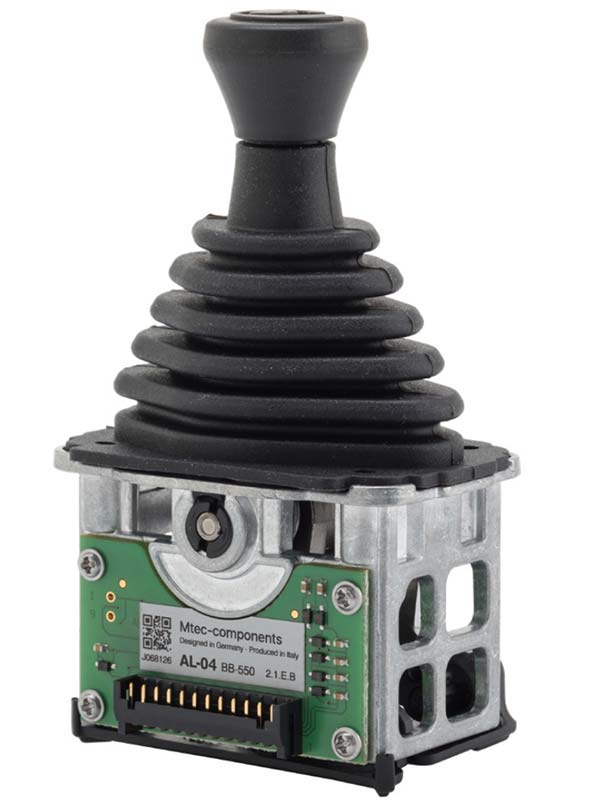

AL-04 single axis versions
AL joystick series

ANALOGUE 36° VERSION
The AL-04 single axis analogue 36° joystick version has these common features:
| MECHANICAL | |
| Deflection angle | 36° (stepless) |
| Weight | 118 g |
| POTENTIOMETER TRACK | |
| Total track resistance for axis | 5 kΩ ±20% |
| Linearity (wiper open circuit) | ± 2% |
| Electrical range | ± 34° (100% output) |
| Center tap position | 48-52% |
| Maximum voltage | 30 Vdc |
| Maximum wiper current | 3 mA |
| Recommended wiper load impedance | > 200 kΩ |
| SWITCH - DIRECTIONAL OR CENTER OFF / CENTER ON | |
| Switch activation angle | ± 3,5° |
| Maximum applicable voltage | 30 Vdc |
| Maximum output current | 3 mA |
ANALOGUE 25° VERSION
The AL-04 single axis analogue 25° joystick version has these common features:
| MECHANICAL | |
| Deflection angle | 25° (stepless) |
| Weight | 118 g |
| POTENTIOMETER TRACK | |
| Total track resistance for axis | 5 kΩ ±20% |
| Linearity (wiper open circuit) | ± 2% |
| Electrical range | ± 23° (100% output) |
| Center tap position | 48-52% |
| Maximum voltage | 30 Vdc |
| Maximum wiper current | 3 mA |
| Recommended wiper load impedance | > 200 kΩ |
| SWITCH - DIRECTIONAL OR CENTER OFF / CENTER ON | |
| Switch activation angle | ± 3,5° |
| Maximum applicable voltage | 30 Vdc |
| Maximum output current | 3 mA |
DIGITAL 5x5 STEPS VERSION
The AL-04 single axis digital joystick version has these common features:
| MECHANICAL | |
| Detent angles: | |
| Zero | 0° | Step 1 | ± 7,2° |
| Step 2 | ± 14,4° |
| Step 3 | ± 21,6° |
| Step 4 | ± 28,8° |
| Step 5 | ± 36° |
| Weight | 118 g |
| ELECTRICAL TRACK | |
| Switch activation angle | < 400 Ω° |
| Maximum applicable voltage | 30 Vdc |
| Maximum output current | 3 mA |
AL-04 single axis features
ALTERNATIVE YOKE TYPE
The yoke type of a joystick is defined by the maximum available number of steps. In addition to the version with 5 steps, there is one more option with 2 steps.
| MECHANICAL | |
| Detent angles with 2 steps: | |
| Zero | 0° | Step 1 | / |
| Step 2 | ± 14,4° |
| Step 3 | / |
| Step 4 | / |
| Step 5 | ± 36° |
| DIMENSIONS (mm) | |
![]() | |
| Note: the above image shows the standard knob. AL-04 single axis joystick, when used, needs an area that must be guaranteed for its correct actuation. This area is a 89,5 mm from neutral position of the joystick. | |
| MECHANICAL | |
| The mechanical detents with analogue output is also available depending on the selected yoke type. | |
AL-04 single axis options
The AL-04 single axis joystick family can be customized with the following options:
• friction (position hold)
• gaiter
• knob type
• angle limiter
Every cableless or cable control system can have each joystick configured in a different way in relationship of the requests with the machine and its application.
| FRICTION (POSITION HOLD) |
| There is the possibility to have the various versions of AL-04 joystick with friction (position hold) function. The weight change to 132 g. |
![]() |
| GAITER |
| The MTEC standard is in silicon with 40 ShA material, but CR with 50 ShA material is also an available option. |

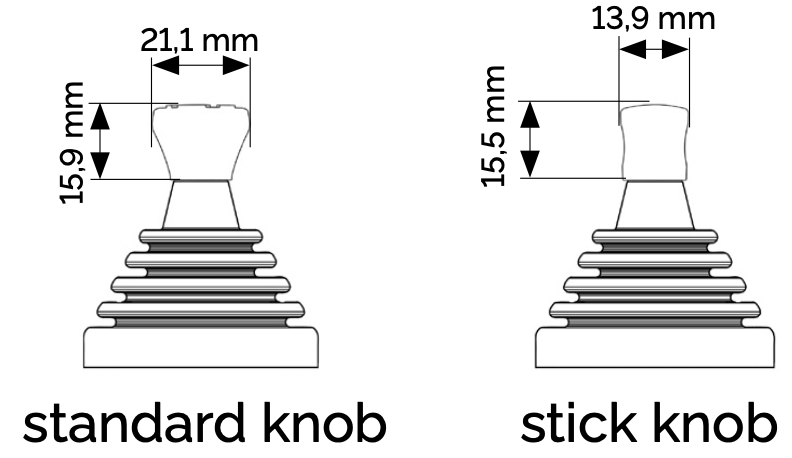

| KNOB TYPE | |
| They are available in two different shapes: • standard knob • stick knob |
![]() |
| ANGLE LIMITER | |
| The angle limiter blocks the lever stroke separately of any semi axis at angles narrower than the 36° maximum.
Configurable positions are: • zero operating step: 0° angle run • one operating step: 7,2° angle run • two operating steps: 14,4° angle run • three operating steps: 21,6° angle run • four operating steps: 28,8° angle run • five operating steps: 36° angle run without angle limiter Each angle limiter is mounted in the joystick with two M 2x4 mm screws. The recommended screw torque is 0,3 Nm |
|
